1000W 2000W MPPT Solar Grid Tie Inverter DC22-65V/ 45V-90V or to AC110V220V Can Work with PV Panels or Battery

51365255-china-only-inverter-dc22v-65v-1000w-95-265vac

In stock

Electrical & Tools

$926.44 $193.79
Model*
Input Voltage*
Output Voltage*
-
+
$193.79
OUR 5 POINT CUSTOMER PROMISE

1.60-Day Money Back Guarantee

2.Tracking number for every order

3.Safe payment via Stripe® or Paypal®

4.Free shipping for most countries.

5.Encrypted SSL security for 100% protection

1000W 2000W MPPT Solar Inverter DC22-65V/ 45V-90V or to AC110V220V Can Work with PV Panels or Battery with Export Limit Function

Type: DC/AC Inverters

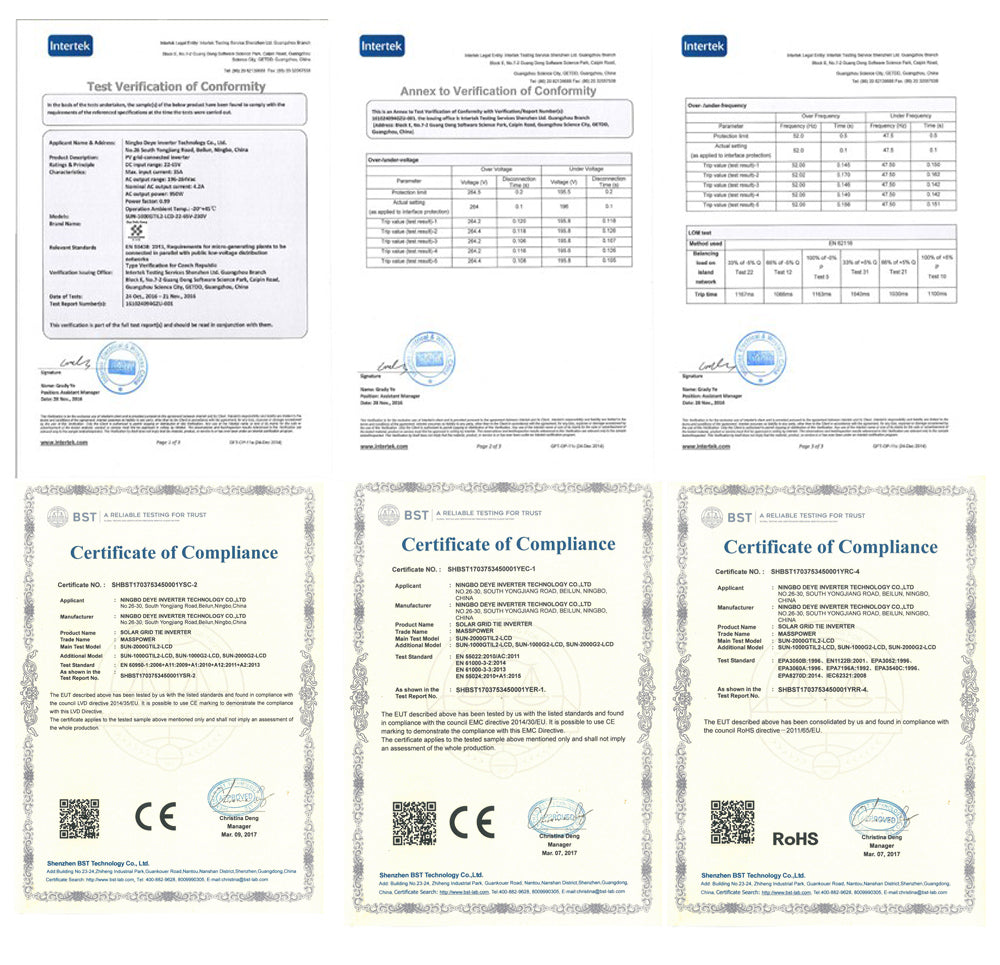

Certification: CE
Certification: RoHS
Origin: CN(Origin)
Size: 430*310*160mm/540*310*160mm
Model Number: SUN-1000GTIL2-LCD/SUN-2000GTIL2-LCD
Output Frequency: 50HZ60HZ
Output Type: Single
Output Power: 1 - 200KW
Weight: 5.5KG/7KG
is_customized: Yes



The 22-65V type inverter will start up at 25V,and 45-90V type inverter will start up at 49.5V,after start, inverter can still work until 22V or 45V.

For 22-65V type inverter, Vmp: 30V-40V solar panel suggested Voc (solar panel) must not exceed 65V, for 45-90V type, Vmp: 50-60V solar panel suggested Voc (solar panel) must not exceed 90V

For 22-65V type, 48V battery suggested; for 45-90V type, 60V battery suggested.

If you want to use solar panel and battery at same time, you need to buy a solar charge controller(SCC). Connect solar panel and battery to SCC, inverter to battery.

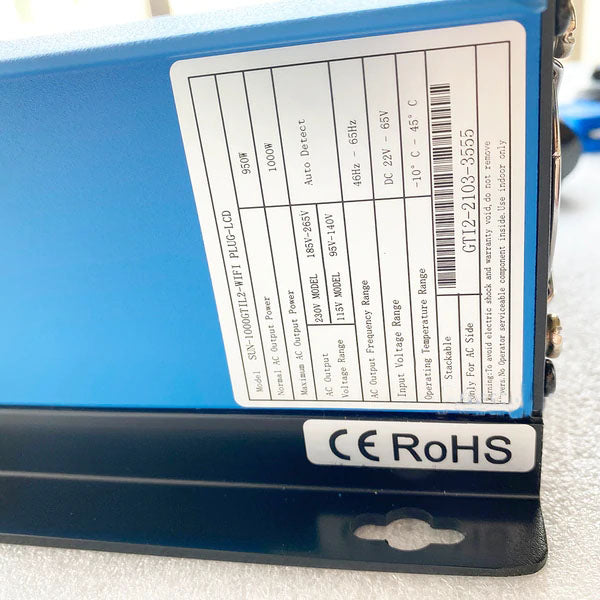

Model: SUN-1000GTIL2-LCD
Output Waveform: pure sine wave
Continuous Power Output: 980W
Peak Power Output: 1000W
Input DC Voltage Range: 22-65VDC/45-90VDC
Max input DC voltage: 65V/90V
Peak power tracking voltage: 25-60V/50-80V
AC Output Voltage Range: 95-140V/185-265V
Frequency Range: 47.5-51.5 for 50HZ,59.3-60.5 for 60HZ
Standby Power Consumption <0.5W
Total Harmonic Distortion <5%
Max Efficiency: >92%
MPPT Efficiency:99%
Power Factor: >0.95
Over Current Protection: Yes
Over Temperature Protection: Yes
Reverse Polarity Protection: Yes
Anti-Island Protection: Yes
Stackable: Yes Just for AC output

Model: SUN-2000GTIL2-LCD
Output Waveform: pure sine wave
Continuous Power Output: 18000W
Peak Power Output: 2000W
Input DC Voltage Range: 22-65VDC/45-90VDC
Max input DC voltage: 65V/90V
Peak power tracking voltage: 25-60V/50-80V
AC Output Voltage Range: 95-140V/185-265V
Frequency Range: 47.5-51.5 for 50HZ,59.3-60.5 for 60HZ
Standby Power Consumption <0.5W
Total Harmonic Distortion <5%
Max Efficiency: >92%
MPPT Efficiency:99%
Power Factor: >0.95
Over Current Protection: Yes
Over Temperature Protection: Yes
Reverse Polarity Protection: Yes
Anti-Island Protection: Yes
Stackable: Yes Just for AC output

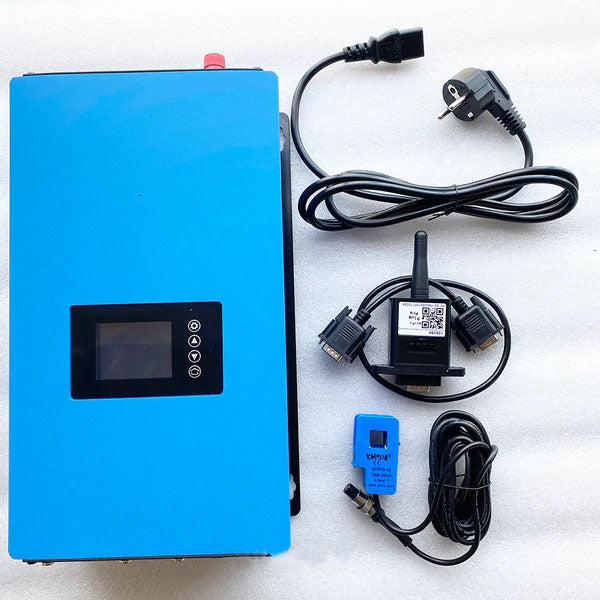

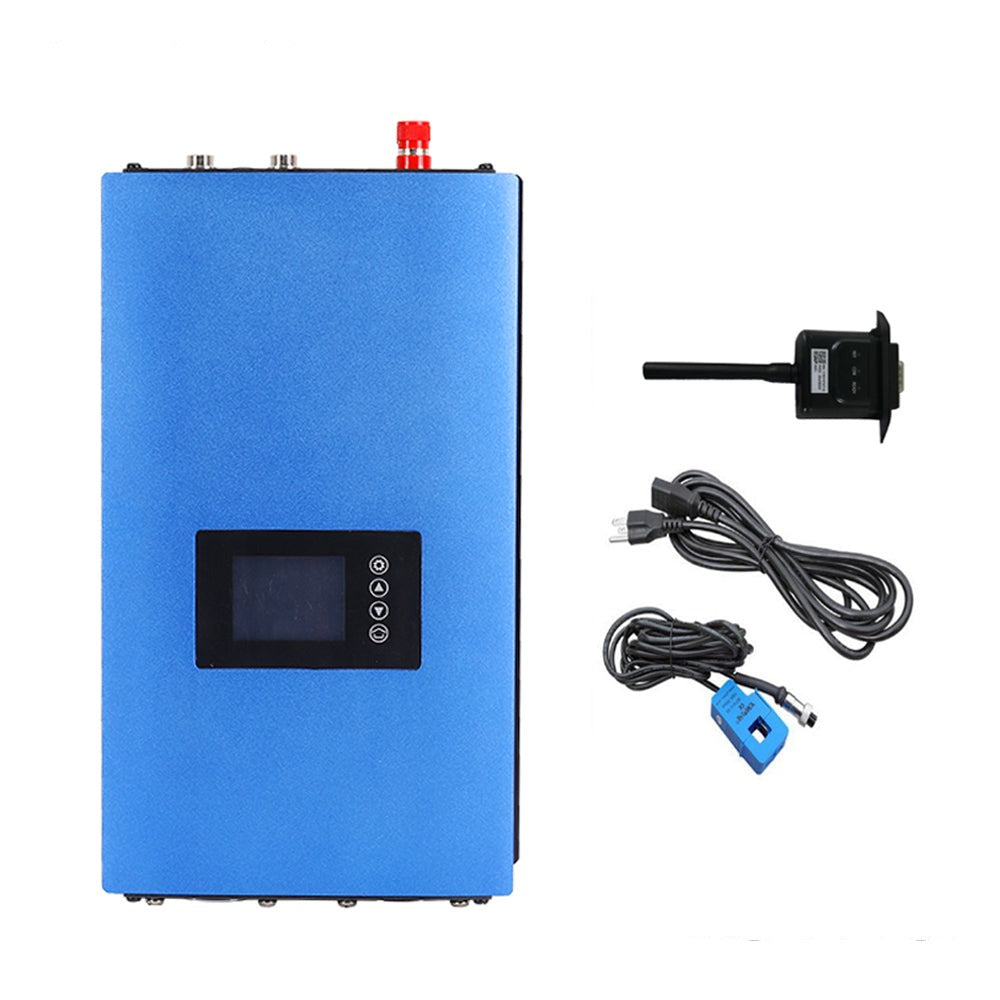

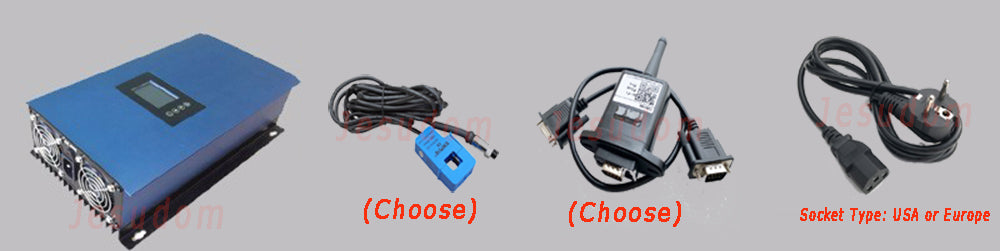

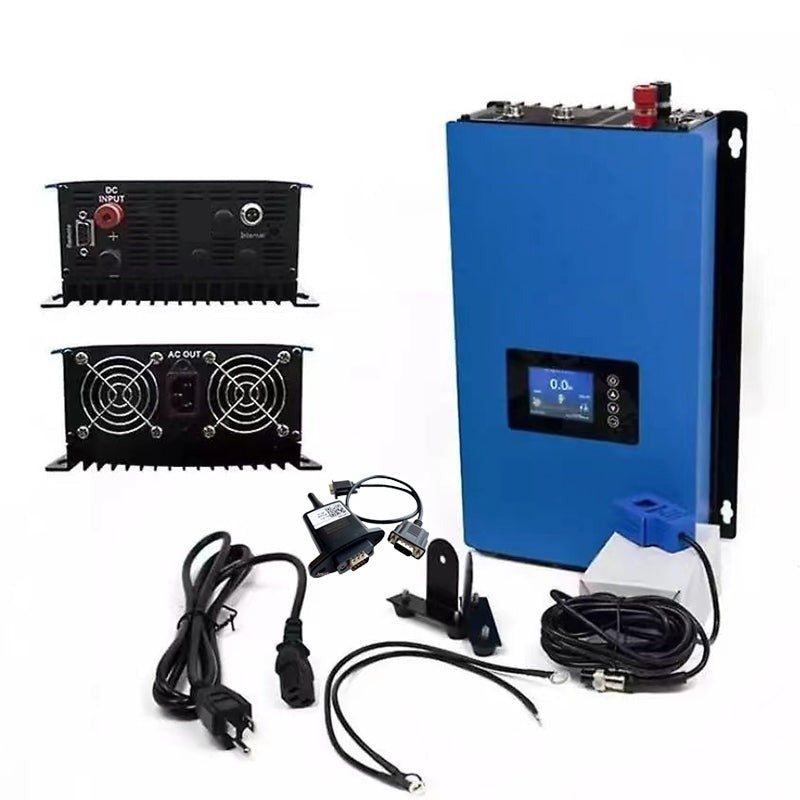

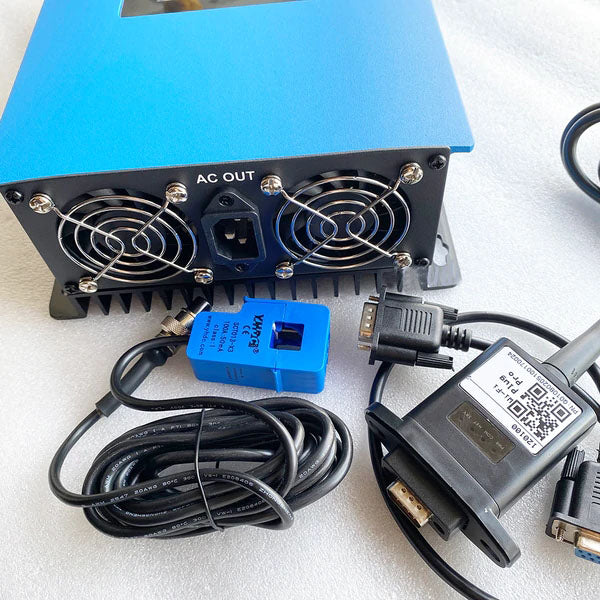

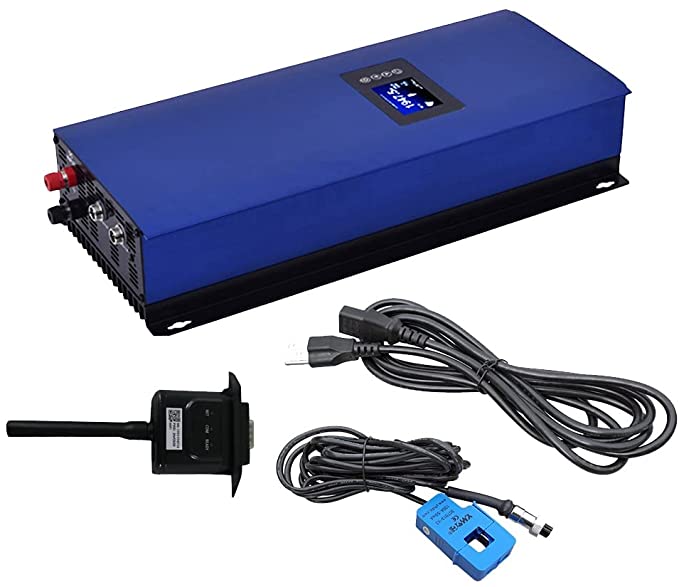

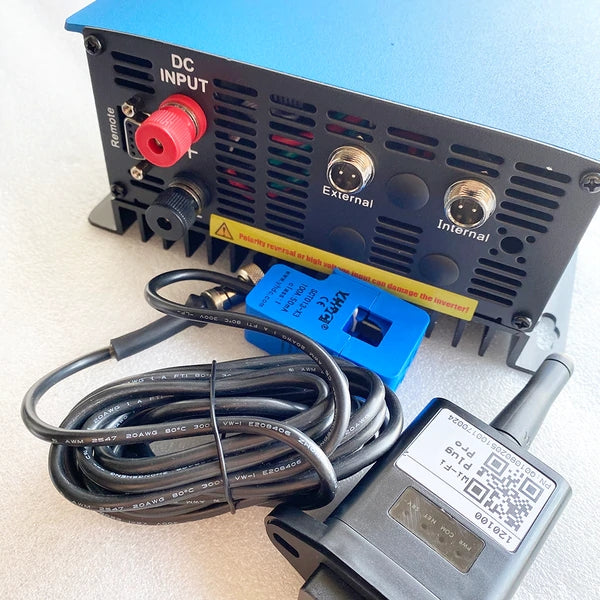

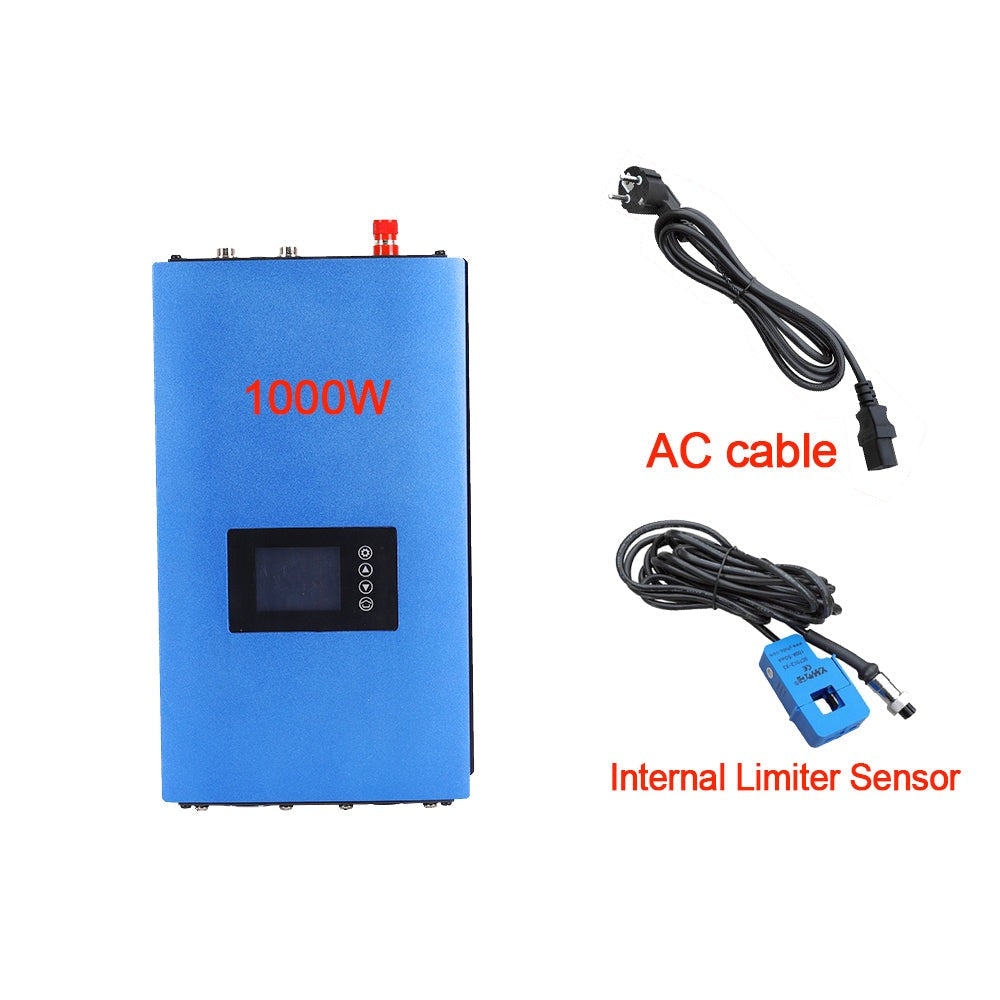

Package Include:

1. Piece MPPT Inverter

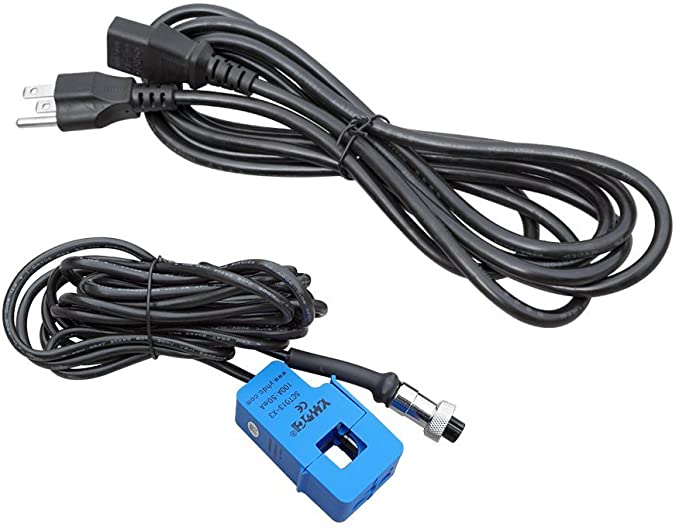

2. Clamp Sensor:with 3meters/10meters cable/20meters (choose)

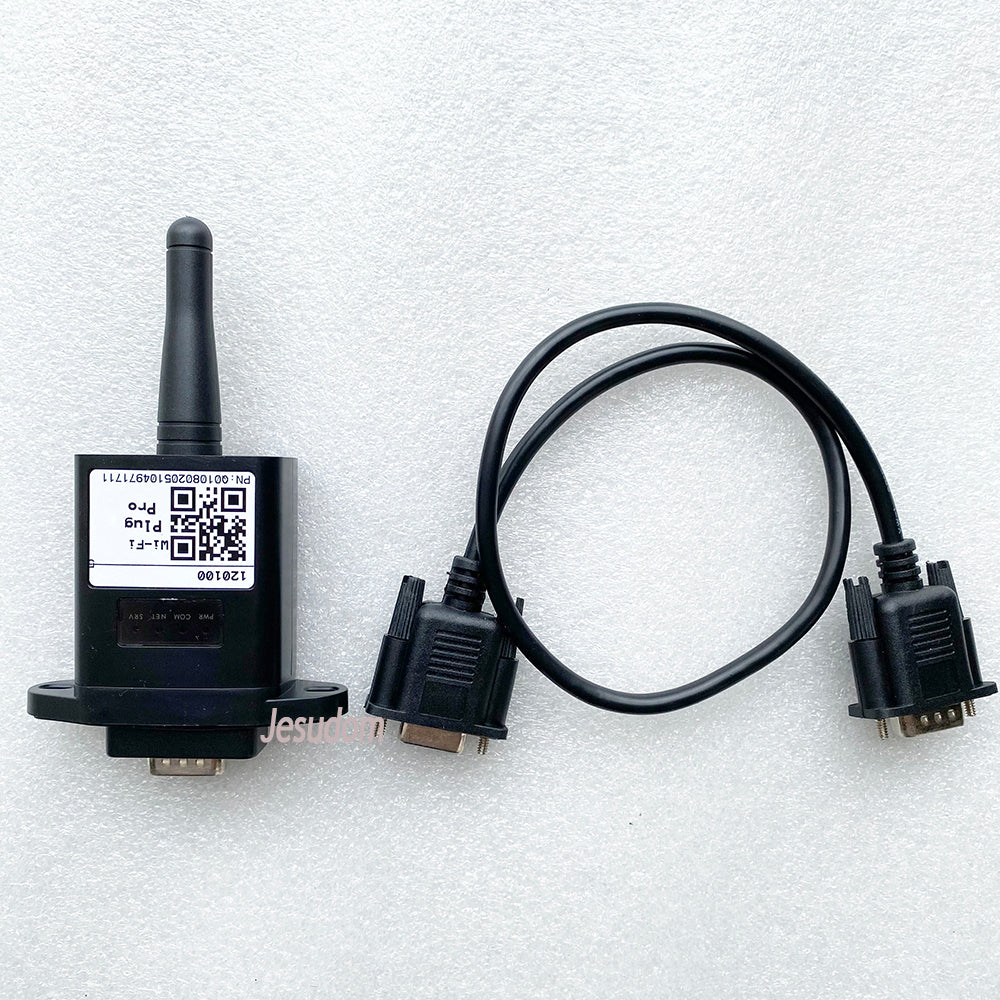

3. A Wifi Plug with Cable(choose)

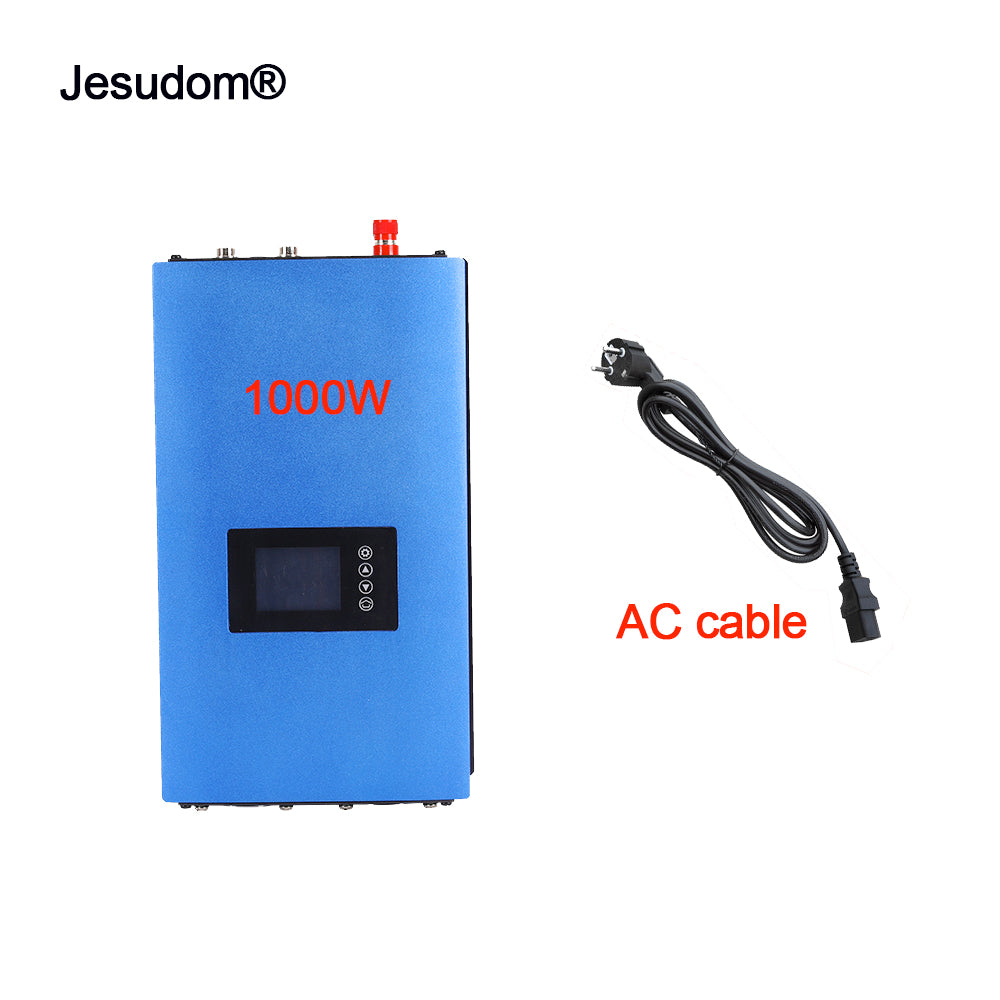

4. An AC Power Cable
5. Piece User Manual (English)

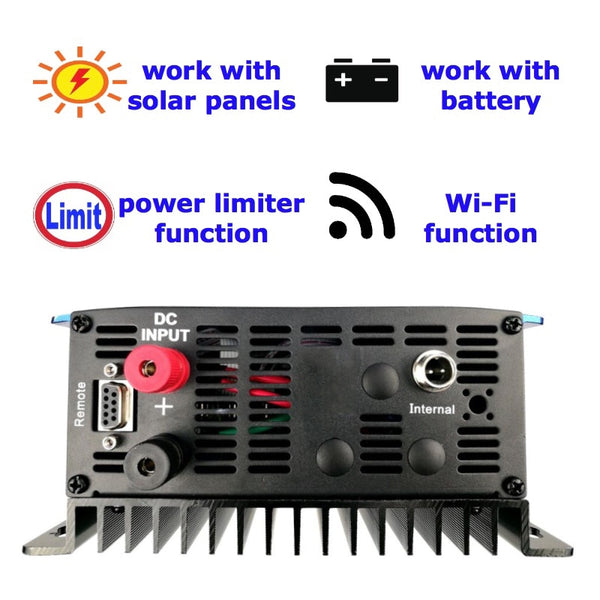

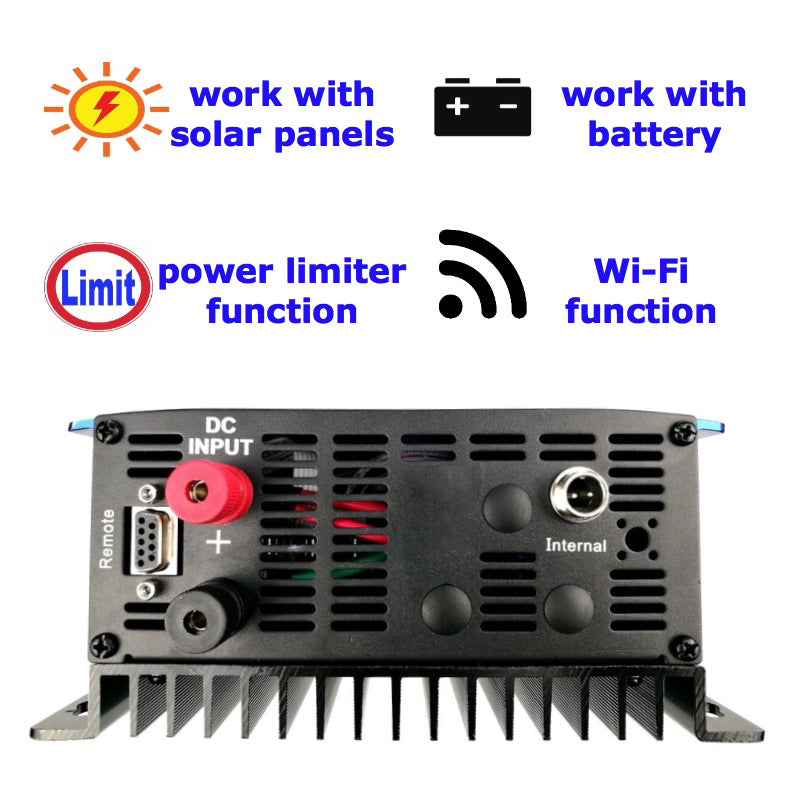

Features Of the Solar grid tie inverter:

  • Easy installation, can be paralleled on AC side.
  • Nice LCD display various parameters including input voltage, output power, temperature,form etc.
  • Can be integrated with internal limit function.

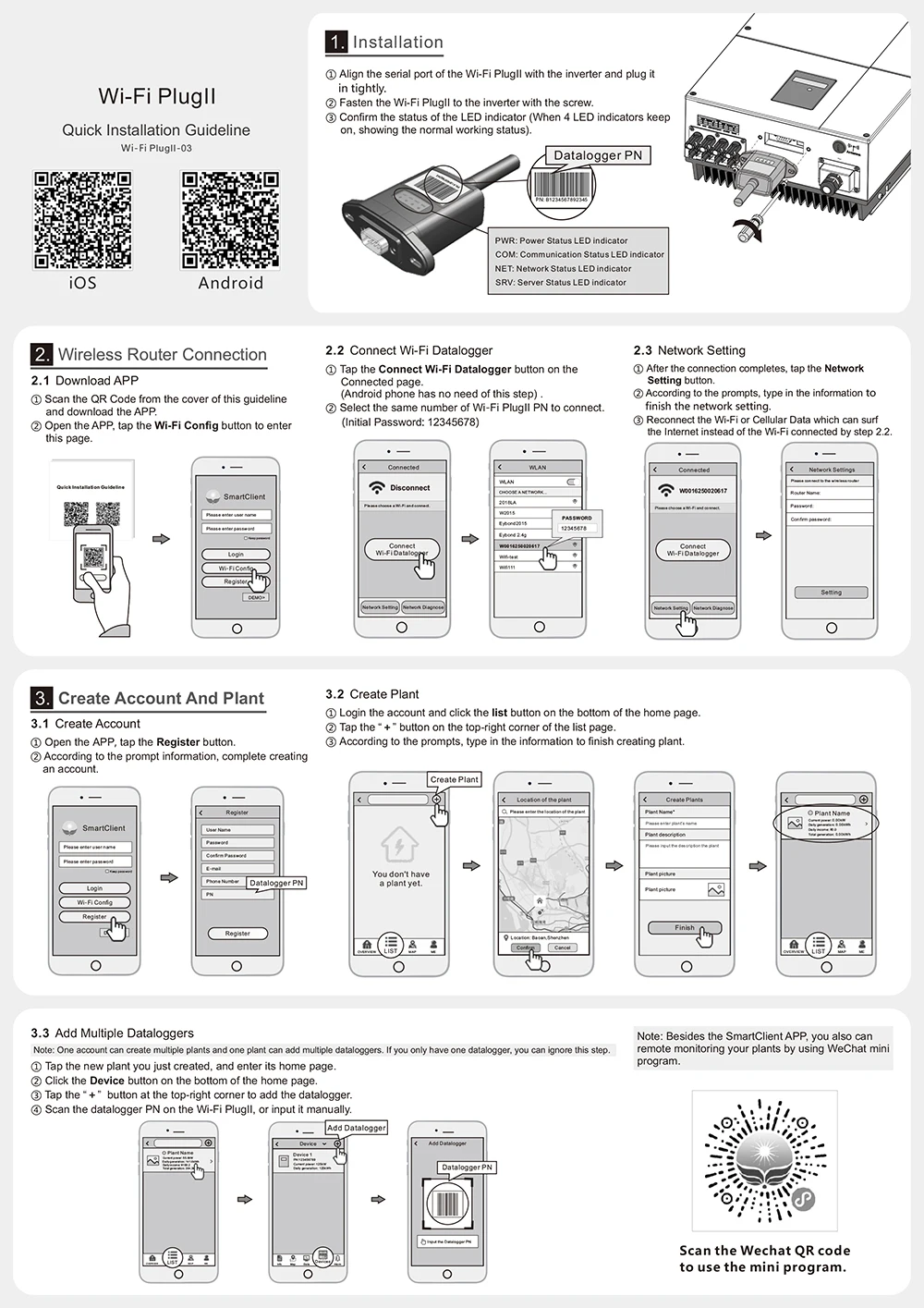

  • Wifi wireless communication extended interface, enable inverter power production data on PC web or phone APP.
  • RS485 extended interface serviceable.power curve, output sine wave collect by wifi plug and monitor.
  • Work with solar panels/work with battery.



Web / Mobile Phone App on Line Monitoring
NOTE : It will be built-in side the inverter .

Product description :

How to use the grid tie inverter ?

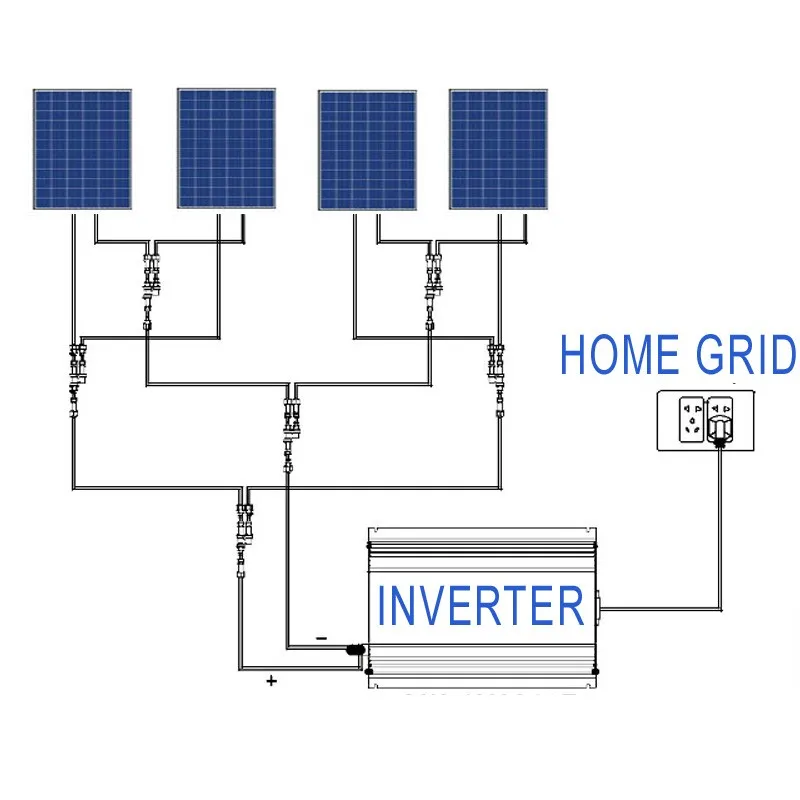

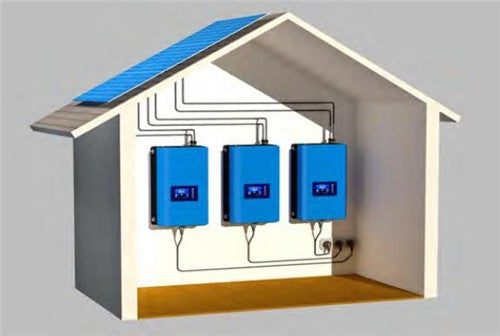

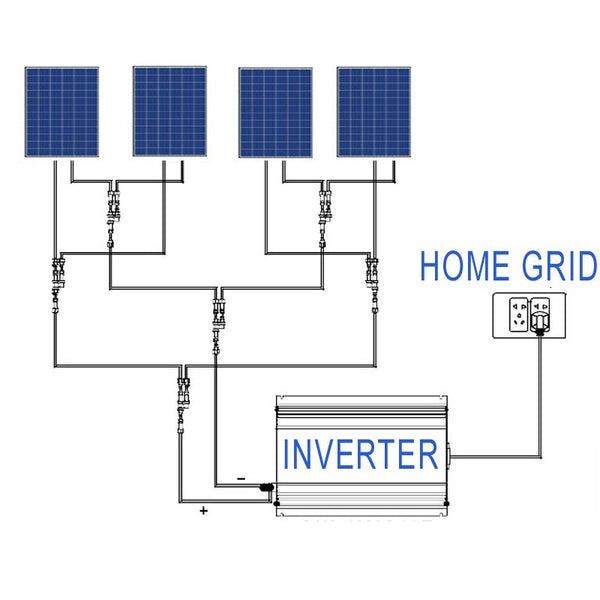

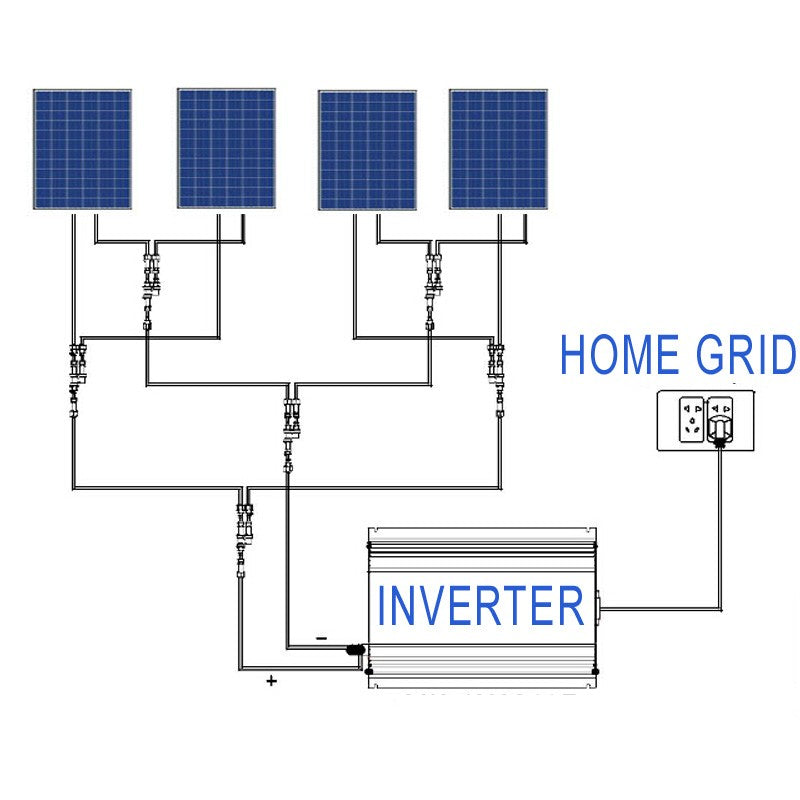

1 unit inverter installation / more units inverters in parallel . the inverter AC output can be connected in the AC plug of grid in the house .

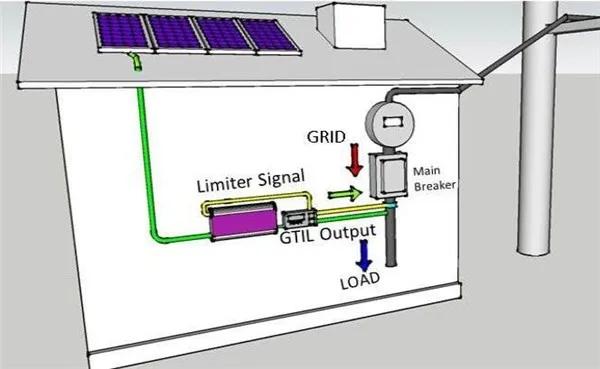

2-1. Using Grid Tie Inverter With Limiter Model

2.1 The Grid Tie Inverter with Limiter delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid.

2.2 The heart of the Grid Tie Inverter with Limiter is the Limiter Module (LM). The LM continuously sampled the power needed by the load through the current sensor connected after the Main Circuit Breaker. The LM then will process the signal. It then sends signal to Grid Tie Inverter how much power to deliver to the load in real time.

2.3 The user, after installing and connecting the GTIL correctly, need not do anything and the unit will do its work automatically.

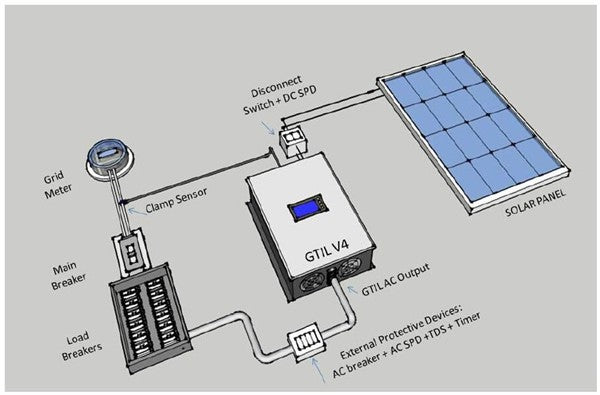

3. Installation of GTIL With Internal Limiter

3.1 This installation is not require an additional limiter module,Installation is much easier.Clamp the current sensor cable to the hot wire to measure the current,the internal limiter will auto detect the load power and control the inverter output power,excess power will be well controlled.

3.2 External protective device including dc and ac SPD(Surge protection device),dc and ac breaker,etc is recommended to installed in the system.

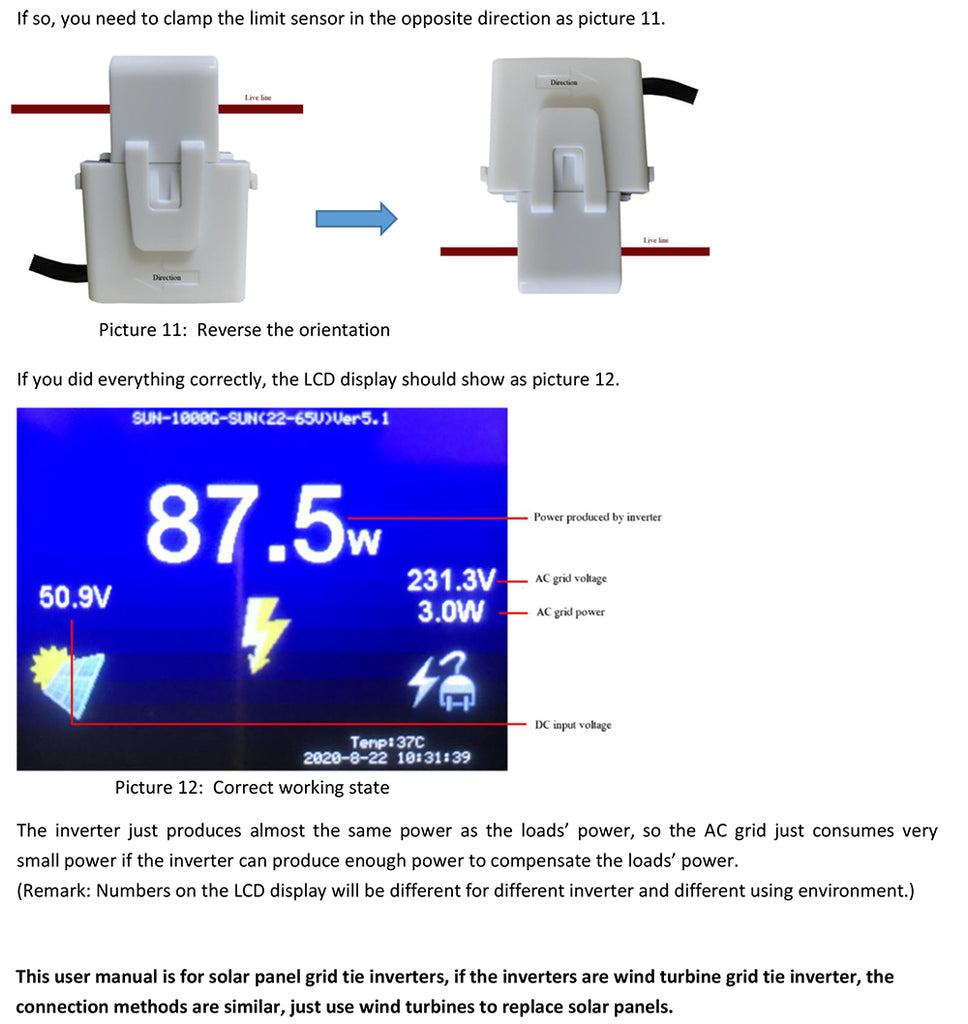

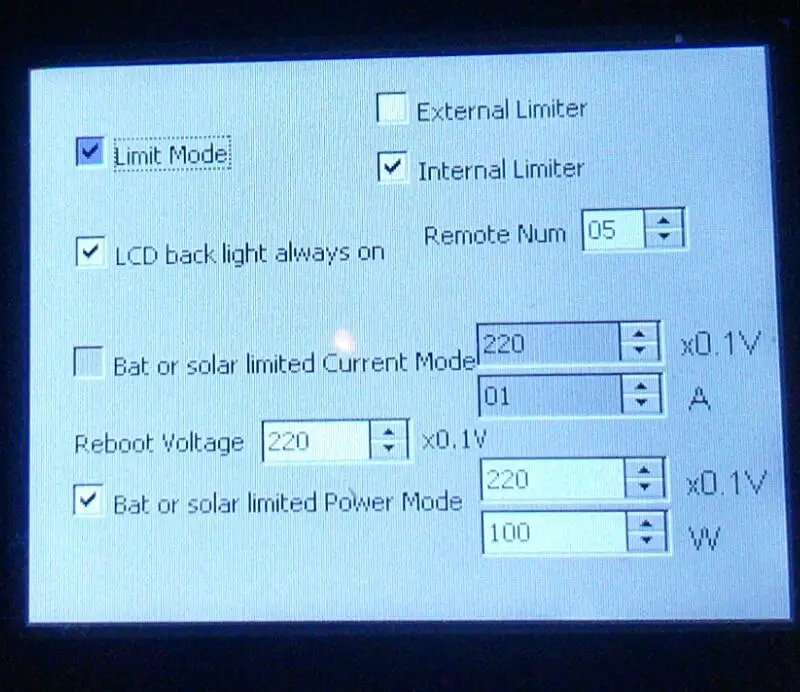

4.Limiter Setting on the LCD of the inverter:

The GTIL include three working mode:
Work as normal GTI without power limitation.
Work under Internal limiter mode
Work under External limiter mode,

Pls make your setting on the LCD and save it,details setting operation,pls read the GTI manual.


5 Battery Discharge Power Mode

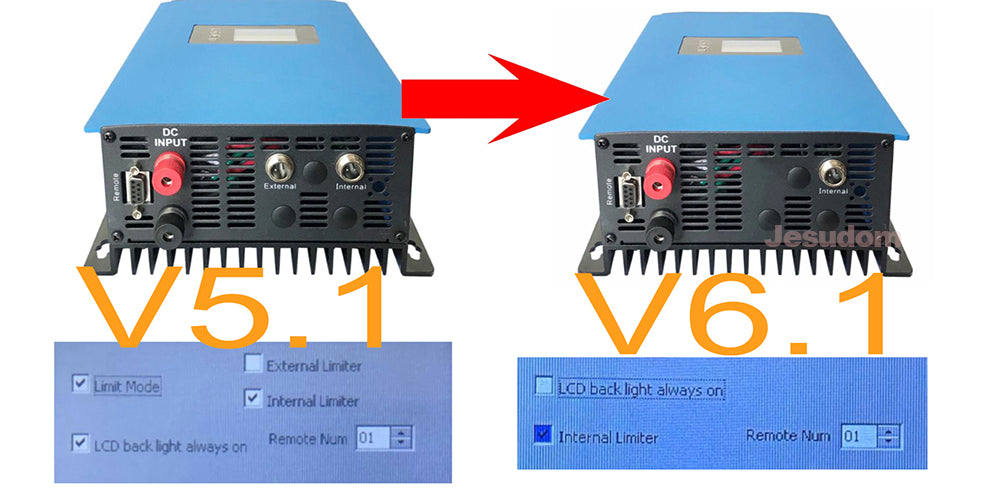

New upgraded firmware enable battery or solar limiter current and power model.

User can set the maximum output power of inverter , this can make the inverter work at cooler contition as user want and extend the lifespan of the inverter .
User can set kick in/off voltage of the inverter which can flexible using with battery bank depend on users mind and can prevent battery bank from over discharged .

6 Limiter Module Specification

1. Clamp sensor- Max 100A
2. Wattmeter- Max 9999w
3. Terminal Block-Max 20A
4. Receptacle- max 2000w
5. Clamp sensor signal- 5v AC max mA
6. DC signal Cable- 5v DC, max mA
