Labels will vary occasionally but products are the same.
Electromagnets must meet the following conditions to achieve maximum suction:
- The object to be sucked must have good magnetic permeability.
- Proper use of power supply rated voltage.
- The object to be sucked must be flat and clean.
- The object to be sucked must be greater than or equal to the surface of the magnet
- For example, the magnet is 20*15 mm, so the surface area is
- S=r²π=10²π mm²
- so the object to be sucked must be greater than or equal to 10²π mm² )
- The object to be sucked must be greater than 8mm.(If the thickness decreases, the suction decreases)
- The object to be sucked must be close, the middle can't be interspersed with objects or gaps
Contrary to any conditions, suction will be reduced, not the maximum suction. ！！！Please pay attention when you want to buy it. Refused to dispute, at your own risk.
- Electric lifting magnet.
- Powerful and compact.
- Smooth and flat surface.
- Low consumption and reliable.
- The ambient temperature within 130 degrees.
- Widely applied in automation: assembly line, sorting machine, mechanical arm, experimental facility, etc
- suction means more than 5cm in thickness, surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fit together on an iron-based material.
- Electromagnet in working conditions electromagnetic conversion would produce a certain amount of heat, electricity more frequently than the higher temperature, which is a normal phenomenon.

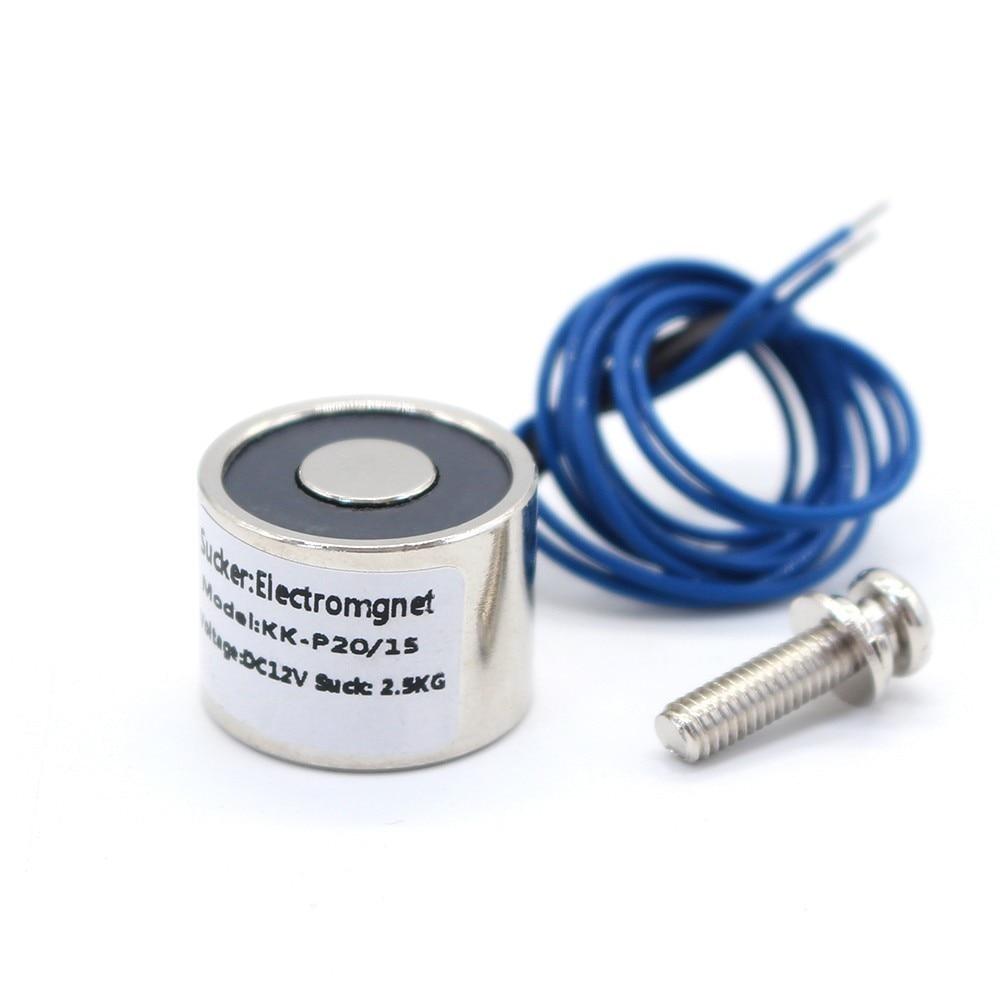

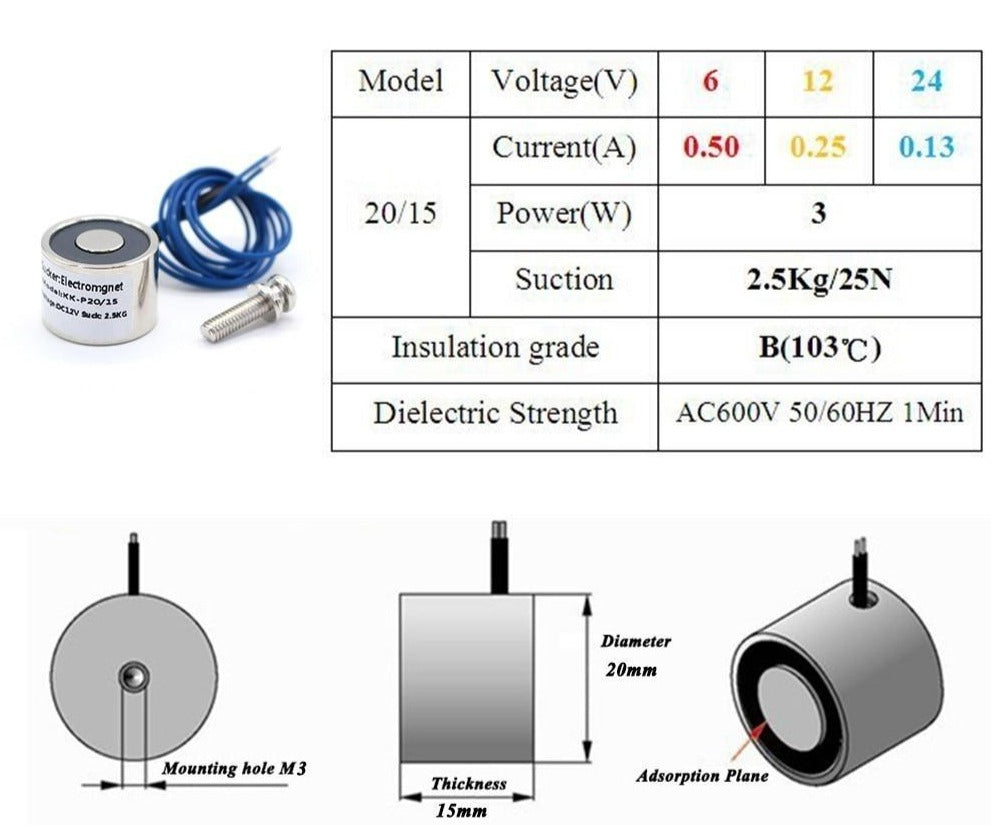

- Model: BR20/15
- Item: Holding Electric Magnet
- Input Voltage: DC 6V 12V 24V 36V
- Power Consumption: 2W
- Holding Force: 2.5kg
- Material: Metal
- Color: Silver

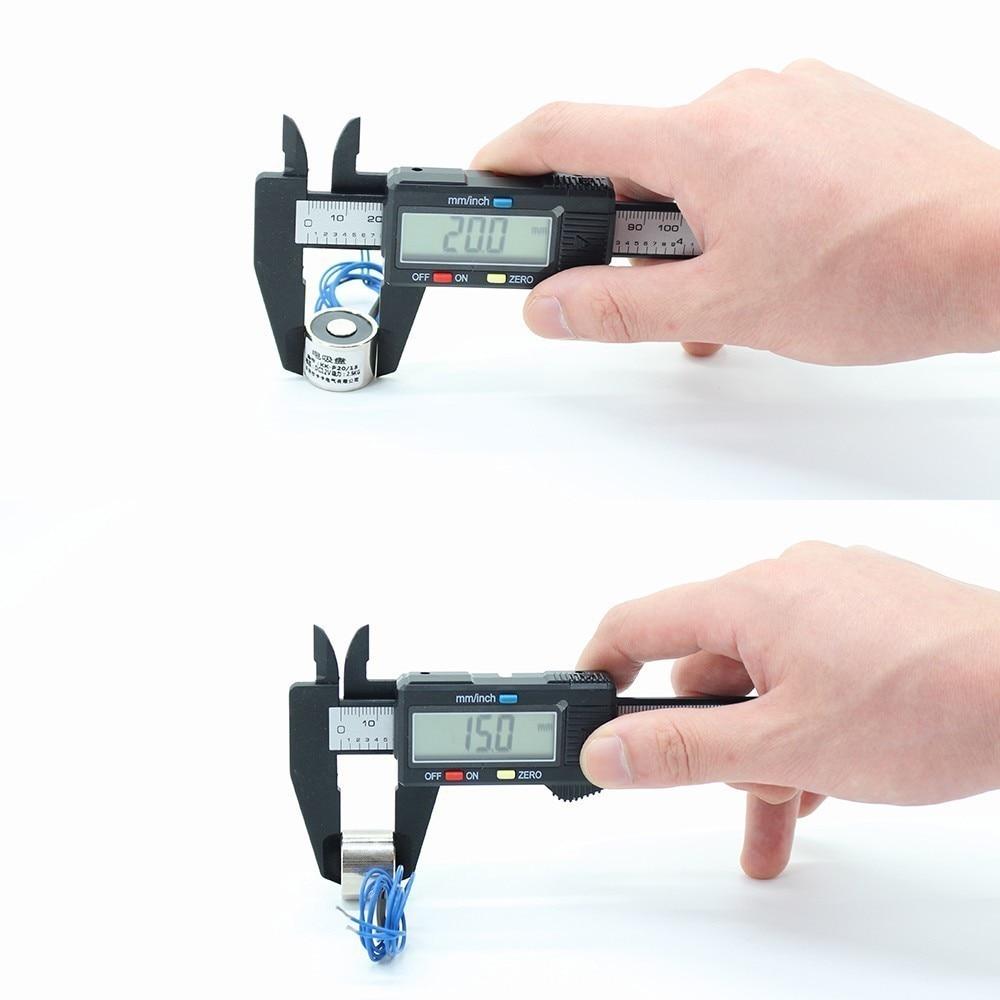

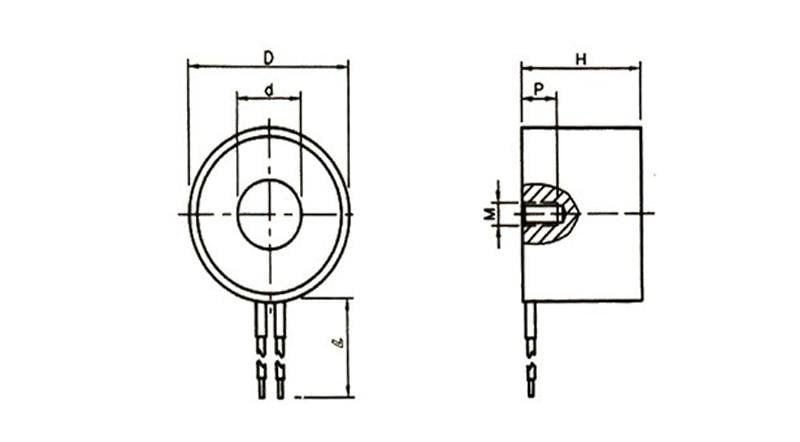

- Diameter: 20 mm
- Center Diameter: 8 mm
- Height: 15 mm
- Lead Length: 200 mm

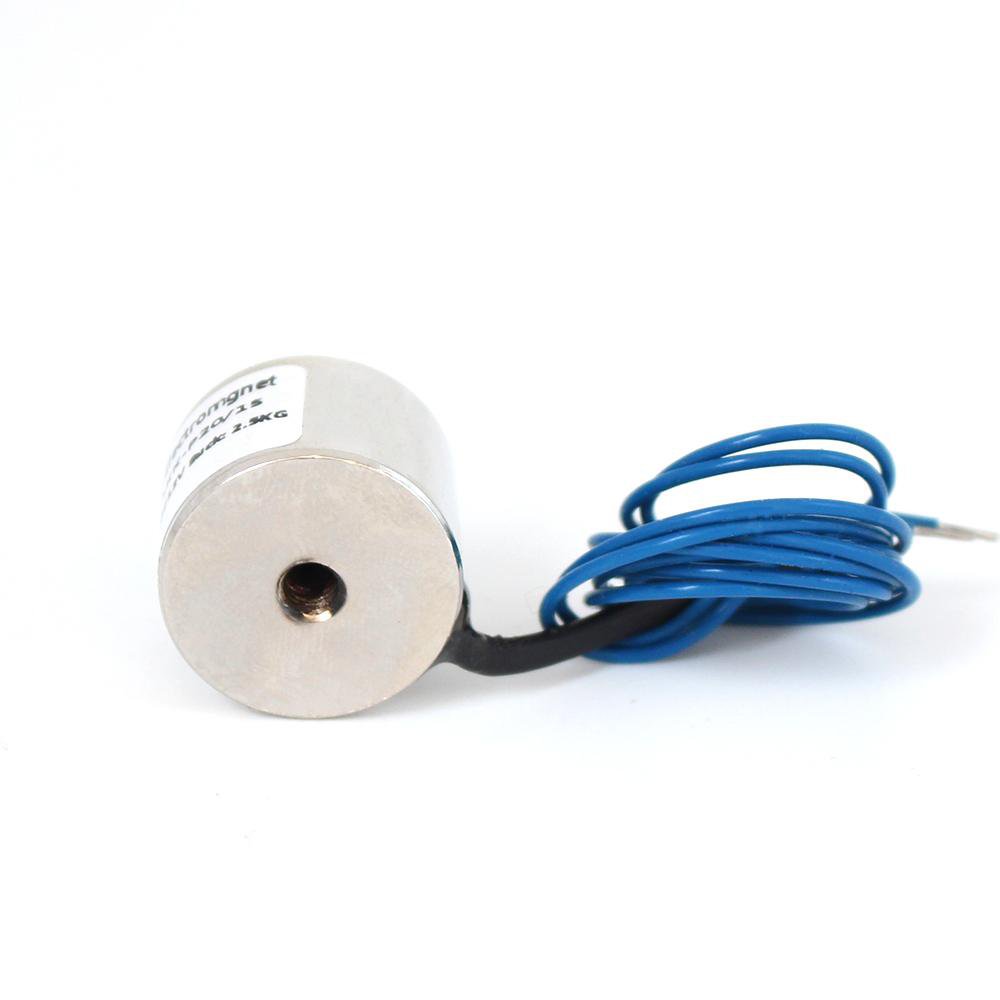

- Thread Size: M4
Package Includes:1 x BR20/15 2W Electric Lifting Magnet Holding Electromagnet Lift 2.5Kg Solenoid
