7" Screen Video Doorbell Intercom Door Phone System + ID Keyfobs + Electric Lock+Alunimum Camera + Power Supply+ Door Exit

9880221-china

In stock

Computer & Office

$266.99
-
+
$266.99
OUR 5 POINT CUSTOMER PROMISE

1.60-Day Money Back Guarantee

2.Tracking number for every order

3.Safe payment via Stripe® or Paypal®

4.Free shipping for most countries.

5.Encrypted SSL security for 100% protection





Video door phone is a video intercom system, which allows you can see and talk to the visitor via outdoor camera. It is embedded in RFID reader, allows you use the keyfob to open the door from outside. It also acts as an access control system,a video intercom system anyway. Outdoor unit equips with  700TVL Camera, cast-iron aluminum alloy panel and rainproof cover. Indoor monitor has  7" LCD Color Screen and white color looks more fashionable.

We add the Electronic Door Lock,exit button, power supply and 5 user keyfobs in one kit. If you need more keyfobs, please feel free to contact us.

 This system supports up to 4 indoor monitors. Besides, this system can set 500 private codes correspond to user cards. If you need more user cards, please contact us.

 b5d3



1

2

3



4





Specification

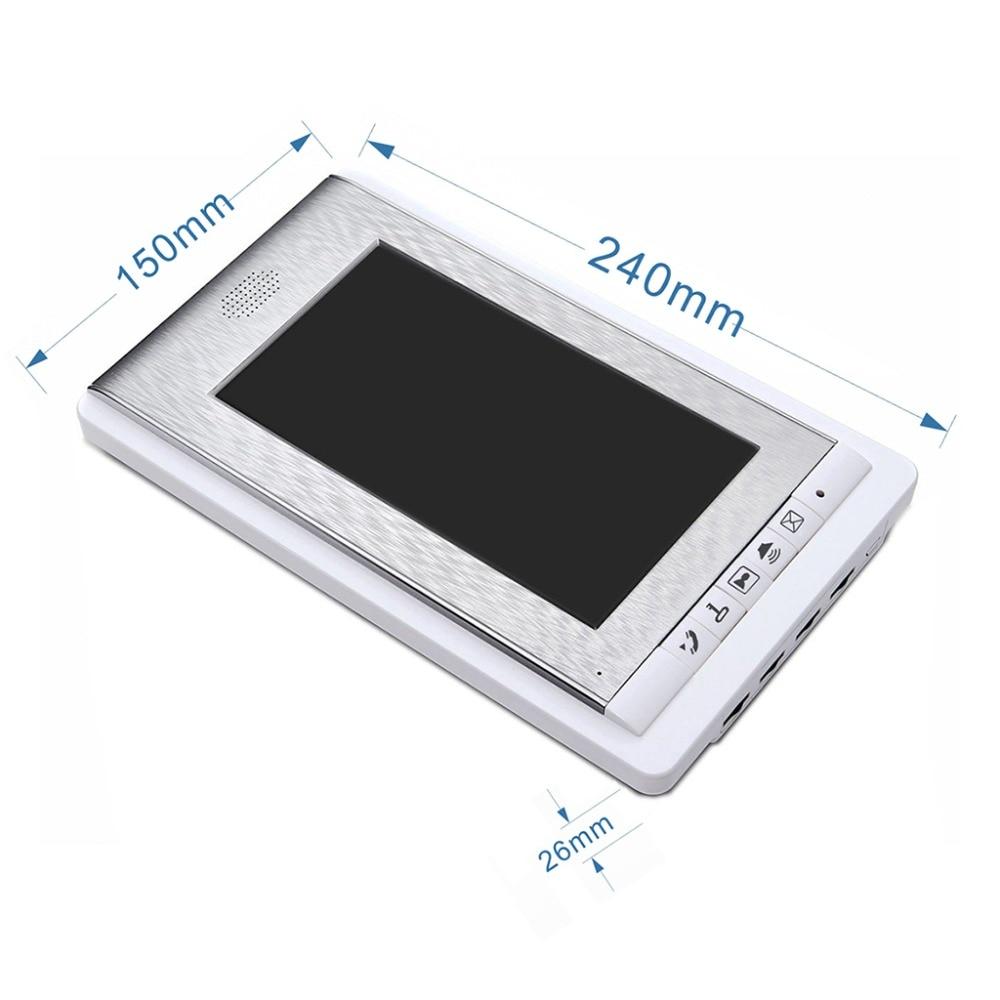

Indoor Monitor

LCD Screen

7" TFT (16:9 Display)

Resolution

800x480

Calling duration

About 120 seconds

Monitor duration

About 60 seconds

Power Consumption

Working: 9W; Standby: 2W

Adapter Input

AC 100-240V, 0.6A, 50/60Hz

Adapter Output

DC 15V, 2000mA

Working Temperature

-35 ~ 50 Celsius

Installation

Wall mounting

Material

PMMA and ABS

Size

240(L) * 150(W) * 23(H)mm

Net Weight

510g

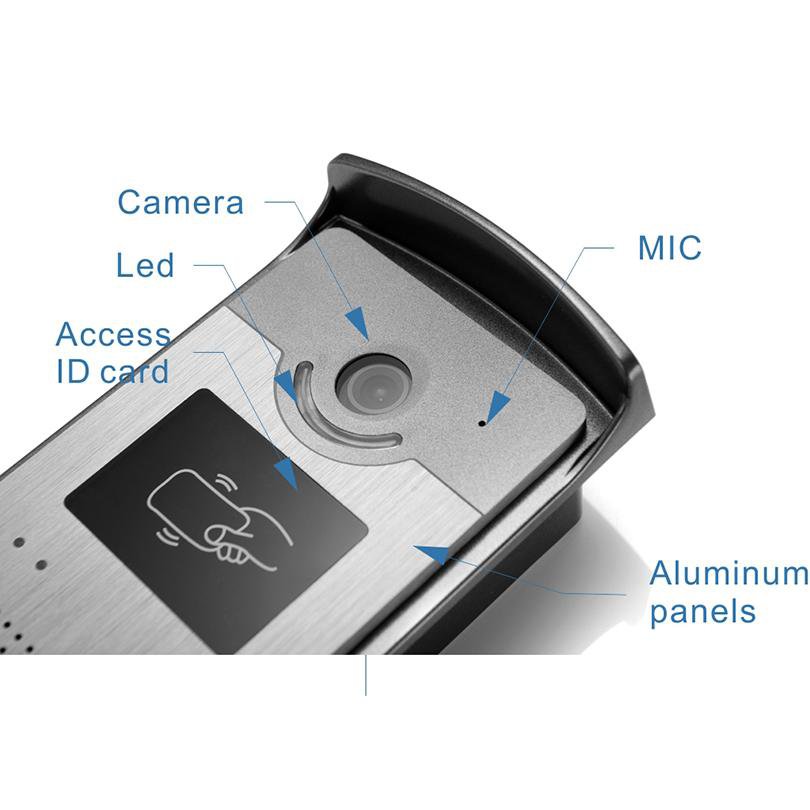

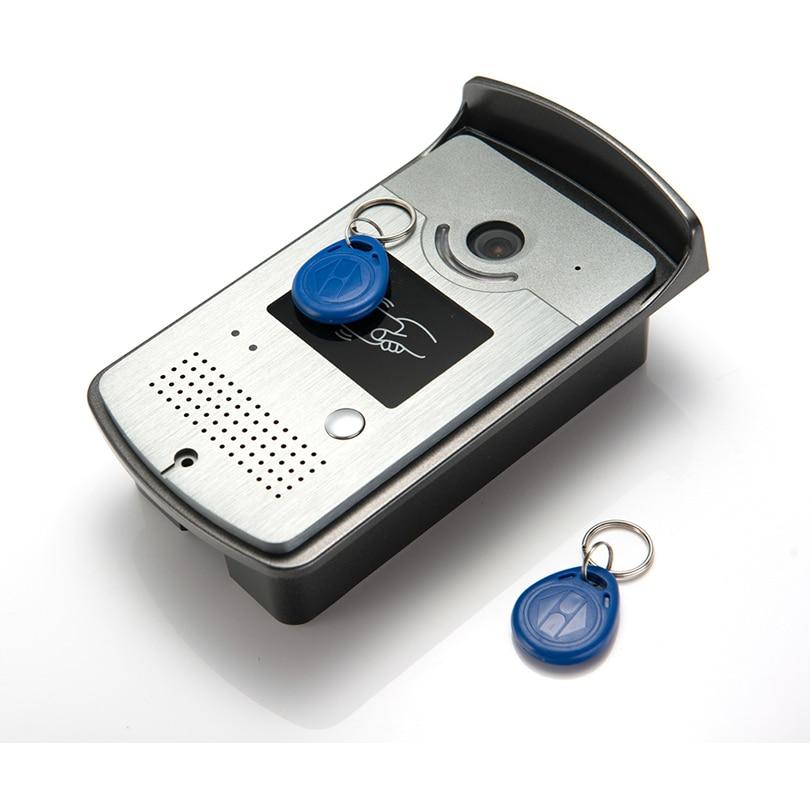

Outdoor Camera

Camera Lens

CMOS

Resolution

700TVL

illumination

0LUX / F1.2

Night Vision

Visible within 1m

Power Supply

DC 15V, 0.5A

Working Temperature

-35 ~ 50 Celsius

Case

Alunimum panels, waterproof

Installation

Wall mounting

Size

174(L) * 96(W) * 36(H)mm

Net Weight

740g





There are several ways to open the door lock when you are outside the door: using the RFID keyfobs or the remote control set. This item comes with 5 RFID keyfobs(including added keyfob and deleted keyfob) . Besides, if you need more RFID keyfobs, you can add the quantity of the RFID keyfob as you like.





d8



Added keyfobs



This card is used for adding new keyfobs. The operation is as follow:

Step 1: Having the *added card* close to the outdoor unit until hearing the sound *beep*.

Step 2: Having the key fob to be added close to the outdoor unit.

Step 3: Having the *added card* close to the outdoor unit again.



Deleted keyfob



This card is used for deleting keyfobs. The operation is as follow:

Step 1: Having the *deleted card* close to the outdoor unit until hearing the sound *beep*.

Step 2: Having the key fob to be deleted close to the outdoor unit.

Step 3: Having the *deleted card* close to the outdoor unit again.



The outdoor unit has RFID reader, which supports max 500 RFID cards/fobs. It is easy to add new cards and delete old cards.



(Note: the function of the added card and delete keyfob (the added/delete keyfob can not unlock the door lock)



Exit Button :

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

  • Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc
  • Application: wood/iron doors



ex





Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Set NC / NO outputs, can control various types of electric locks

  • Based delay control circuit, lock time can be in 0-15 seconds

  • The circuit board has remote control port.

  • Input Voltage: AC 1 10~220V 50~60Hz

  • Output Voltage: DC 12V 3A

P

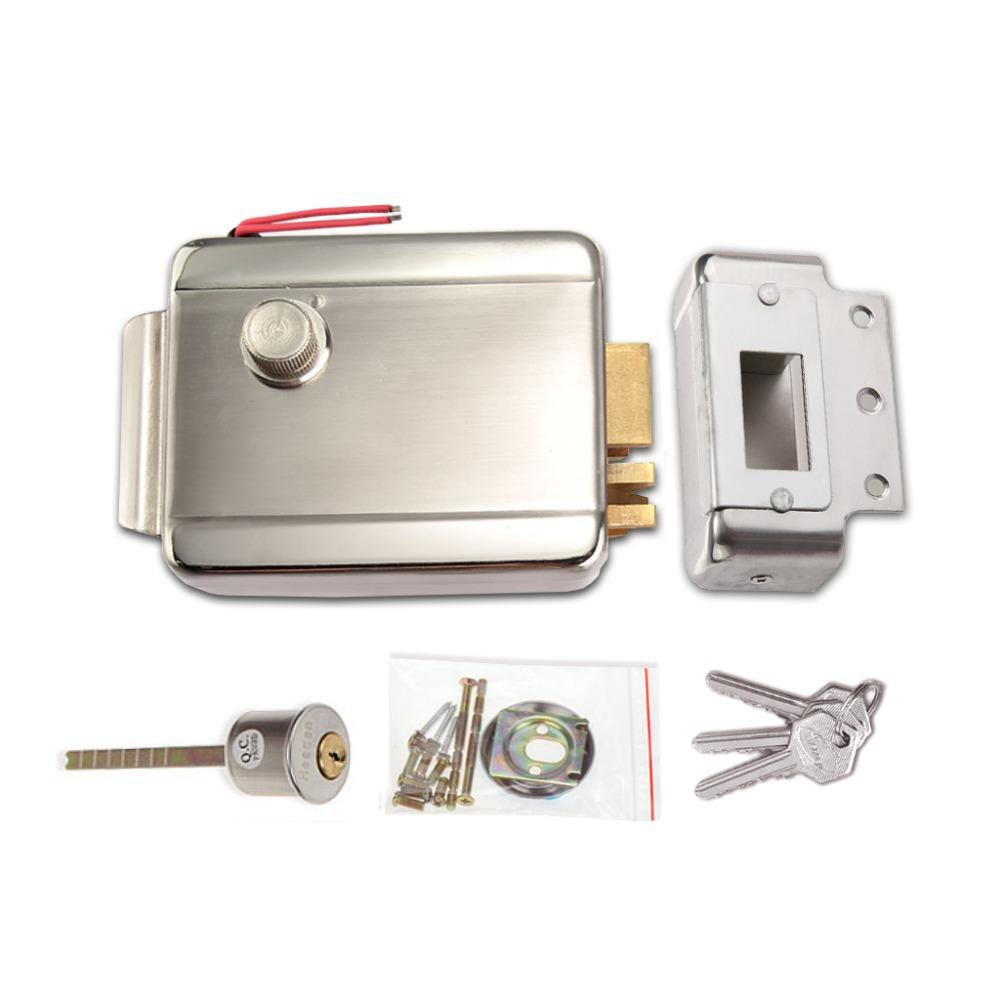

Electric Control Lock



This 12V electric rim lock can unlock via keyfobs, inside button, access control or video door phone system. It can fit for different kinds of doors, mostly for the lock with 35mm-55mm thick. When bolt extends out, the door can be locked normally. It has 2 wires running from it for connecting with access control system and video intercom system.



  • Brand New and high quality
  • Made of Stainless steel
  • Connect via 2-wire to our acccess control system and video intercom system
  • Fits for electrical control, key or hand operation
  • Good quality and durable to use
  • Can be opened from outside (with keys) even if no power
  • Locked with keys from inside, then the button on the lock will not work
  • Automatically lock when the door is closed
  • Fit doors 35mm (1-3/8 inch) to 55mm(2inch) thick



Specification

  • Mode:   NO Mode-(Locked while power is off)
  • Material:    Stainless Steel
  • Authority Certification:   CE & MA Approved
  • Application:   wood/iron doors
  • Working Voltage:   12VDC
  • Working Current:   0.2-0.45A
  • Weight:    1500g
  • Dimension (Face Plate):   131mm x 107mm x 39mm
  • Center distance:    60mm
  • Door distance:    35-55mm



a1a2a3

Wiring Instruction

It is a 4-wire system, we will provide 4 core connectors in the package, you need use 4 core cable to do the connection. Please refer to below wiring.(Please note the e-lock at below photo is not included, if you need, please feel free to contact us)



c2



m2

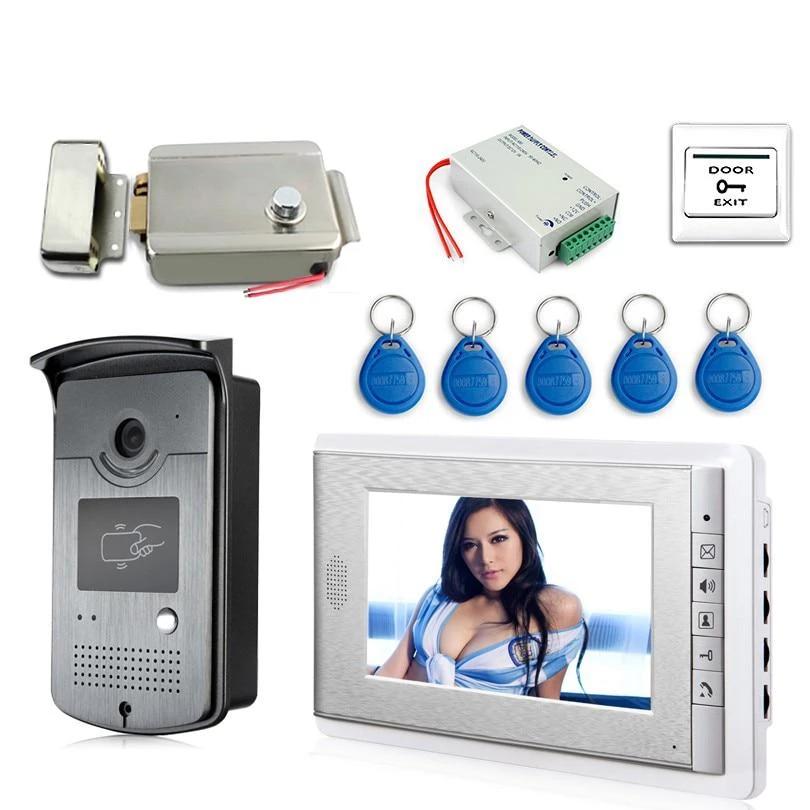

Packing includes:

  • 1 * Outdoor unit
  • 1 * Indoor Unit
  • 1 * Power Supply
  • 1 * Mounting plate
  • 1 * Electric Lock
  • 1 * Exit button
  • 1 * Bag of screws
  • 1 * User manual
  • 5 *125KHz RFID Cards



Attention:



if you need buy Access control systems work with video door phones together, such as ( Entrance guard system/Wireless remote control/Door exit/Access control power supply/ ID Keyfobs and any other video door phone parts) Please send message to us.
